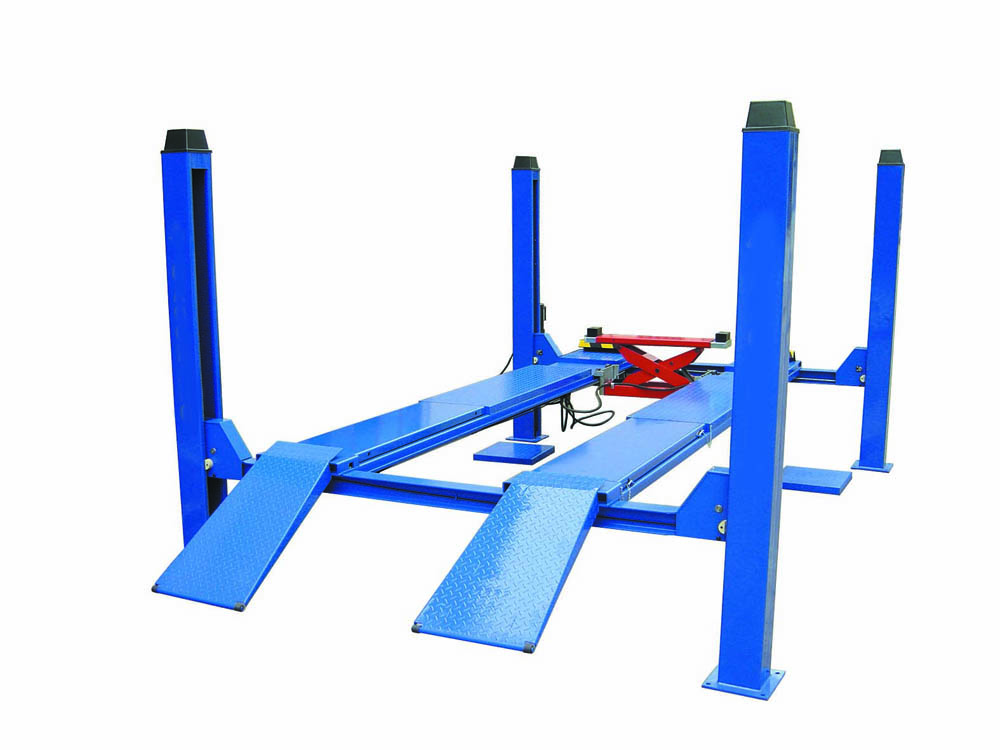

Four Post Lift
Four Post Lift for Alignment, GC-3.5F4,GC-4.0F4,GC-4.5F4,GC-5.0F4,GC-5.5F4,GC-6.5F4,GC-8.0F4,GC-10.0F4
![](/uploads/Brochure Photos/small/GC-3.5F4-1-small.jpg)
Features
- The alignment level of the lift can be adjusted in high precision, which is the ideal equipment for four-wheel alignment.
- The position of the front wheel turning table (optional part) is adjustable so that the side slide plate can be fit for more cars.
- Device performs stable and liable and liable work with anti-braking rope safety insurance.
- With second liftig trolley guide rail and can optional add Rolling Jack.

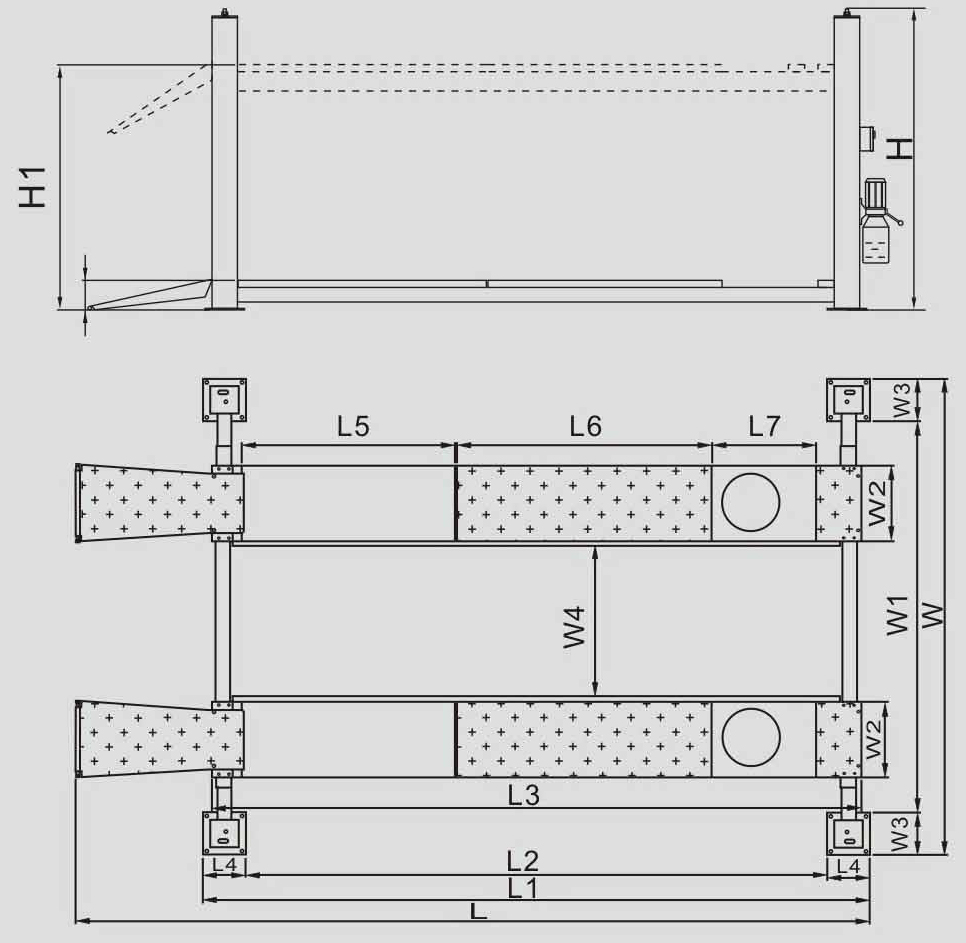

Specifications
Model | GC-3.5F4 | GC-4.0F4 | GC-4.5F4 | GC-5.0F4 | GC-5.5F4 | GC-6.5F4 | GC-8.0F4 | GC-10.0F4 |
Capacity | 3500kg | 4000kg | 4500kg | 5000kg | 5500kg | 6500kg | 8000kg | 10000kg |
Lifting height | 1820mm | 1896mm | 1845mm | |||||
Overall width | 3124mm | 3342mm | 3424mm | 3614mm | ||||
Overall length | 5206mm | 5747mm | 6288mm | 6840mm | 7640mm | |||
Platform width | 490mm | 510mm | 650mm | |||||
Platform length | 4260mm | 4660mm | 5190mm | 5500mm | 5850mm | |||
Minimum height | 220mm | 246mm | 255mm | 260mm | ||||
Lifting time | ≤50S | |||||||
Lowering time | ≤60S | |||||||
Voltage AC 400 or 230V ± 5% 50 Hz |
![]() |
![]() ![]() |
Italian Hydraulic Pump | |
![]() |
|
Rolling Jack (Optional) | |
