Double Scissor Lift

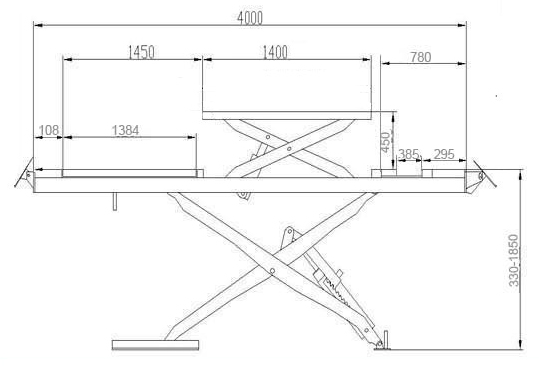

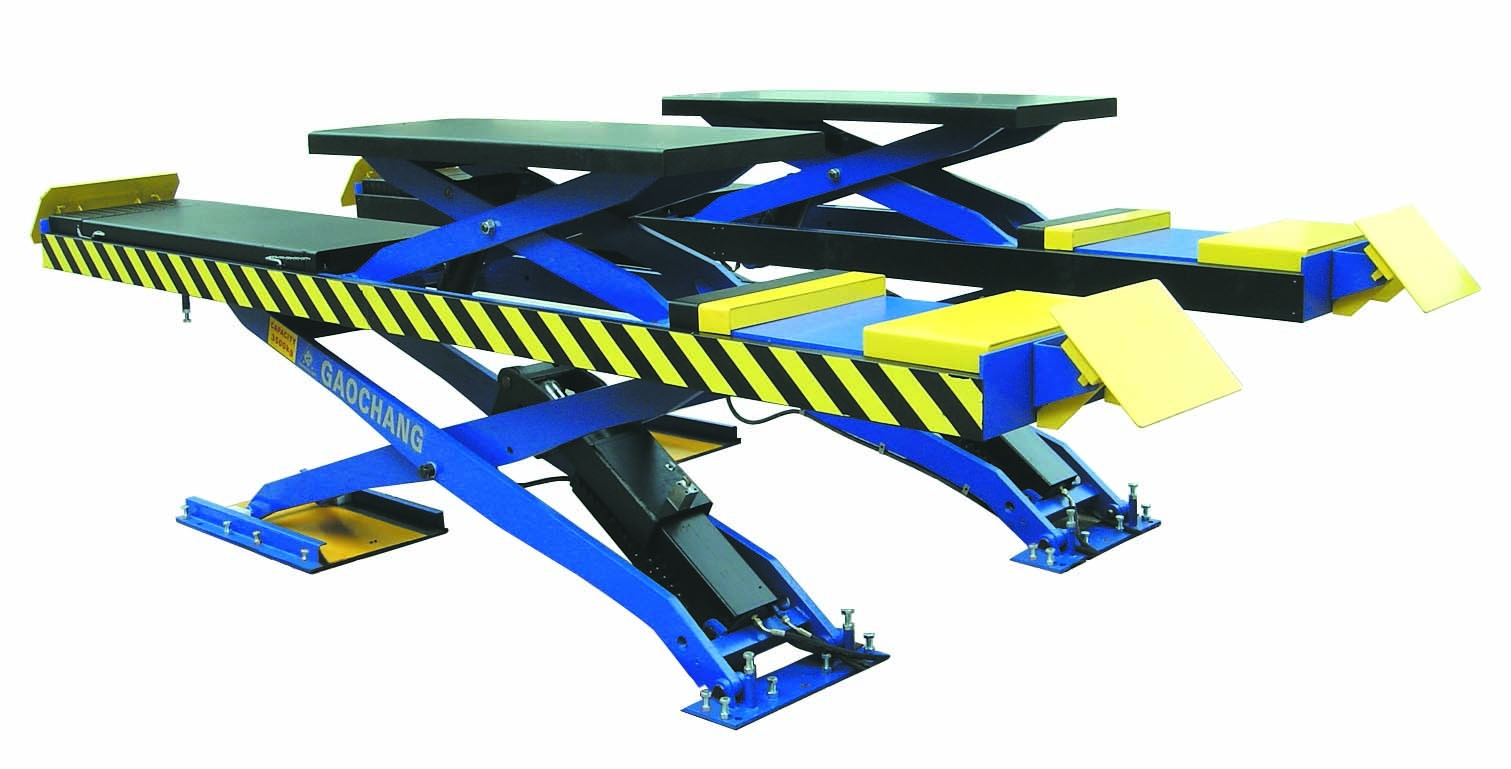

Double Alignment Scissor Lift, GC-3.5MS

Double Scissor Lift (Standard High) for Alignment

  • Stable and reliable equipment relies on imported hydraulic, pneumatic and electrical components.
  • Multi-Position Automatic Leveling System.
  • Pneumatic self-locking devices for safety.
  • Equipped with rear slip-pplates and front recess for turntables.
  • Perfect synchronization by master slave system.
  • Position of the front turntables is adjustable.
  • Can be installed in ground or above ground.
  • Meets CE requirements.

 Capacity  3500kg
 Lifting height  1850mm
 Overall width  2040mm
 Overall length  4480mm
 Platform width  610mm
 Platform length  4000mm
 Minimum height  330mm
 Lifting time  ≤50S
 Lowering time  ≤60S
 Secondary Lift
 Capacity  3500kg
 Lifting height  450mm
 Platform width  550mm
 Platform length  1400mm
 Lifting time  ≤20S
 Lowering time  ≤30S
 Voltage AC 400 or 230V ± 5% 50 Hz
