Double Scissor Lift
Double Scissor Lift (Standard High) for Alignment, GC-4.0MS
Features
- Stable and reliable equipment relies on imported hydraulic, pneumatic and electrical components.
- Multi-Position Automatic Leveling System.
- Pneumatic self-locking devices for safety.
- Equipped with rear slip-pplates and front recess for turntables.
- Perfect synchronization by master slave system.
- Position of the front turntables is adjustable.
- Can be installed in ground or above ground.
- Meets CE requirements.

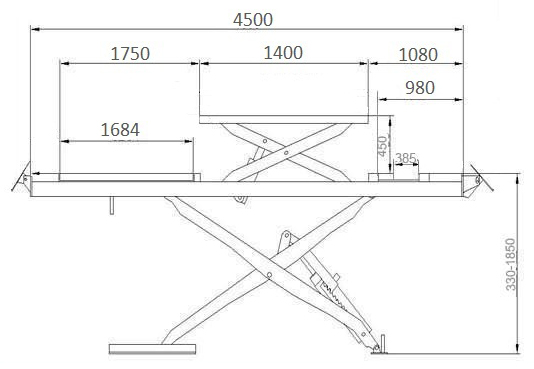

| Capacity | 4000kg |
| Lifting height | 1850mm |
| Overall width | 2040mm |
| Overall length | 5000mm |
| Platform width | 610mm |
| Platform length | 4500mm |
| Minimum height | 330mm |
| Lifting time | ≤50S |
| Lowering time | ≤60S |
| Secondary Lift | |
| Capacity | 4000kg |
| Lifting height | 450mm |
| Platform width | 550mm |
| Platform length | 1400 |
| Lifting time | ≤20S |
| Lowering time | ≤30S |
| Voltage AC 400 or 230V ± 5% 50 Hz | |
