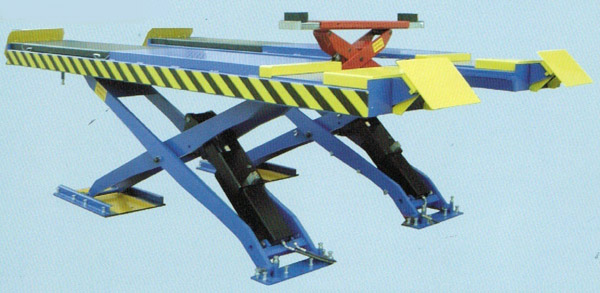

Large Platform Scissor Lift
Large Platform Scissor Lift (Standard High) for Alignment, GC-3.5M4, GC-4.0M4
Features
- In ground installation
- Optional to choose alignment platform or flat platform
- Low voltage control (24V)
- With antiknock valve and safety valve to ensure the safety
- Perform stable and reliable relying on some imported components
- Good synchronization and precise leveling for alignment
- Position o ftruntable can be adjusted to suit for various types of vehicles
- Optional to choose drive-on ramp to be on ground installation
Specifications
| Model | GC-3.5m4 | GC-4.0M4 |
| Capacity | 3500kg | 4000kg |
| Lifting height | 1850mm | |
| Overall width | 2148mm | |
| Overall length | 4480mm | 4980mm |
| Platform width | 654mm | |
| Platform length | 4000mm | 4500mm |
| Minimum height | 330mm | |
| Lifting time | ≤50S | |
| Lowering time | ≤60S | |
| Voltage AC 400 or 230V ± 5% 50 Hz | ||

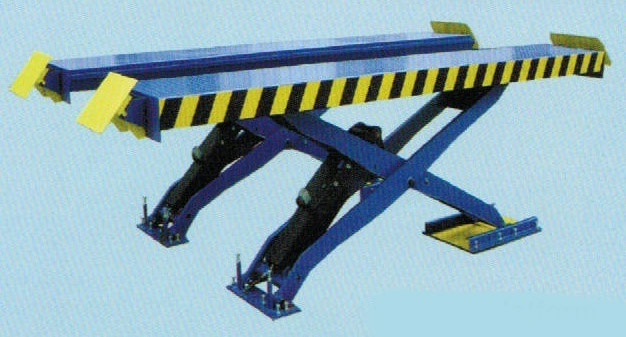

 With Flat Platform |
 |
