Low Profile Large Platform Scissor Lift
Low Profile Scissor Alignment Lift, GC-3.5M418,GC-4.0M418,GC-4.5M418,GC-5.5M418
Features
- Luxurious scissor profile platform structure with super synchronization.
- Level can be well adjusted to meet the need for wheel alignment.
- Device performs stable and reliable work relying on imported hydraulic, pneumatic and electrical components.
- The pneumatic self-locking system and anti-explosion pipe structure are automatic opening when lowering which ensure the safety of the device.
- Ingenious and unique sliding system and closed platform, also don't need ground pits.
- With trolley guide rail and can add the second lifting trolley (optional part).
- The position of the front wheel turntable (optional part) is adjustable and suitable for various types of automobile.

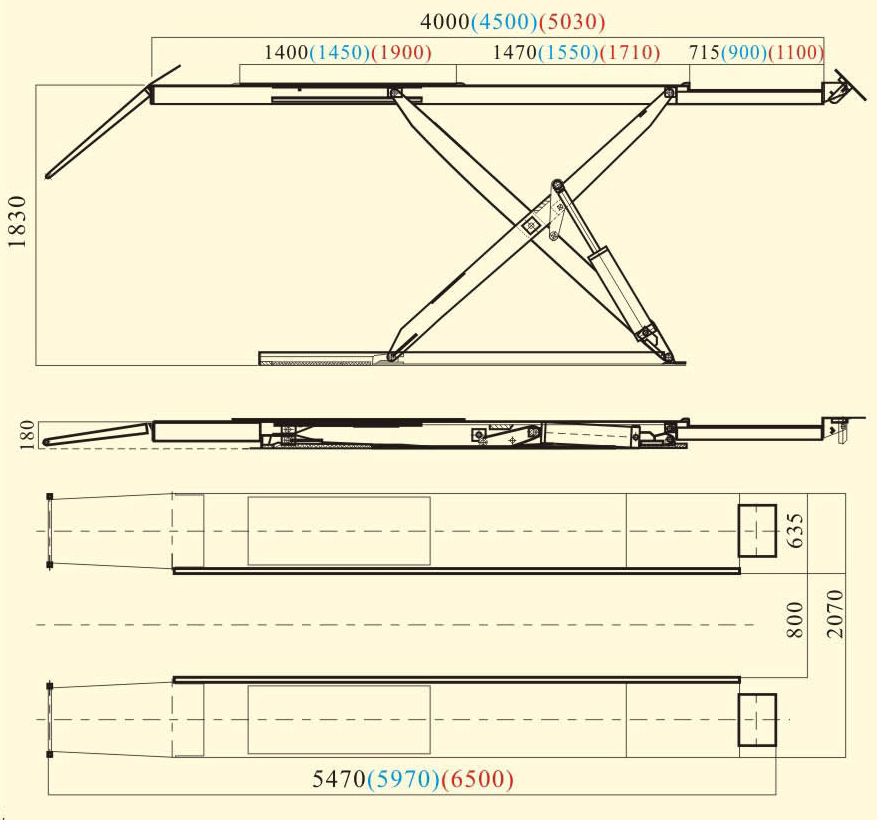

Specifications
| Model | GC-3.5M418 | GC-4.0M418 | GC-4.5M418 | GC-5.5M418 | |
| Capacity | 3500kg | 4000kg | 4500kg | 5500kg | |
| Lifting height | 1830mm | ||||
| Overall width | 2070mm | ||||
| Overall length | 5470mm | 5970mm | 6500mm | ||
| Platform width | 635mm | ||||
| Platform length | 4000mm | 4500mm | 5030mm | ||

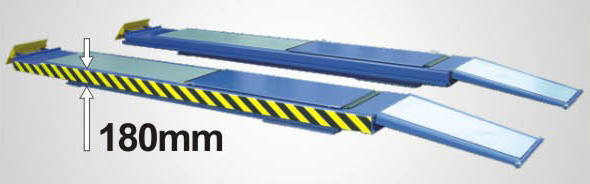

| Minimum height | 180mm | ||||
| Lifting time | ≤50S | ||||
| Lowering time | ≤60S | ||||
| Secondary Lift | |||||
| Capacity | 2000kg | 2000kg | 3000kg | ||
| Lifting height | 375mm | ||||
| Voltage AC 400 or 230V ± 5% 50 Hz | |||||
 |
 |
 |
|
|
||
 |
||
| Rolling Jack |
