Mid Rise Scissor Lift

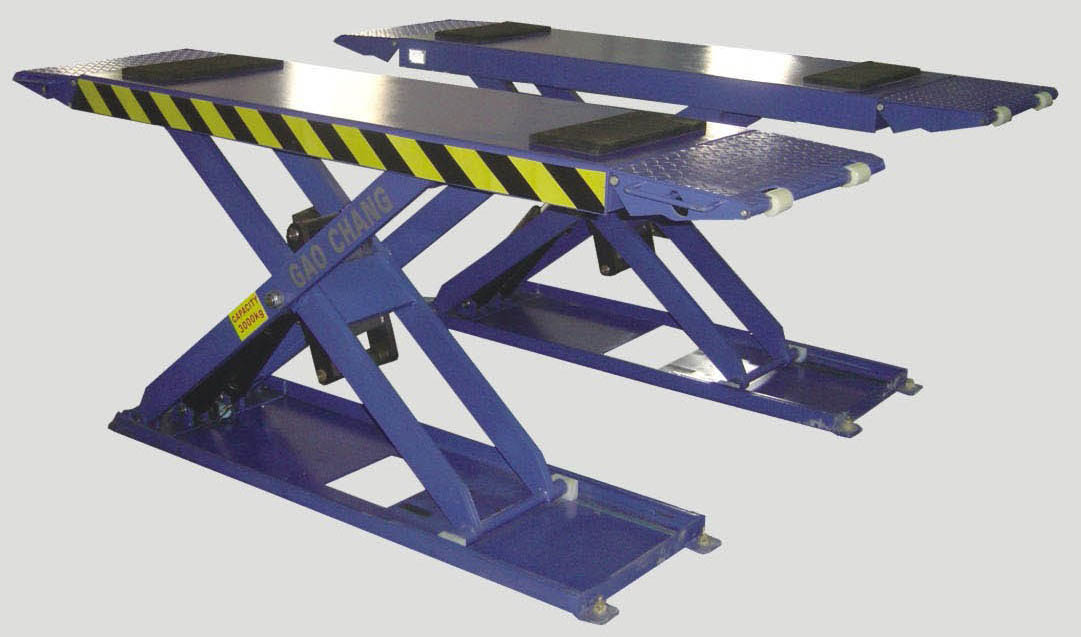

3 Ton Mid Rise Scissor Lift (with Mechanical Lock), GC-3.0SSE
Features
- Scissor structure with floor installation, be convenient for tyre operation and wheelbase maintenance.
- Original height is only 125mm.
- Hydraulic cylinders lock each other and anti-explosion for pipe, stable, reliable and synchronization.
- Italian hydraulic power unit.

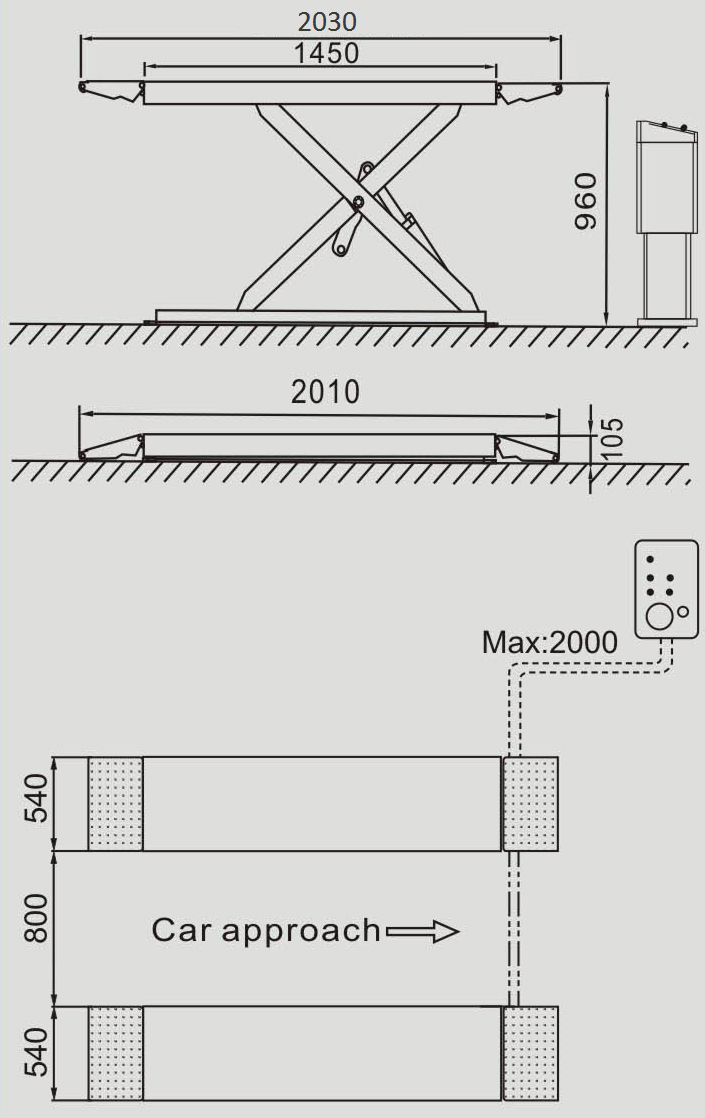

Specifications
| Capacity | 3000kg |
| Lifting height | 960mm |
| Overall width | 1880mm |
| Overall length | 2030mm |
| Platform width | 540mm |
| Platform length | 1450-2030mm |
| Minimum height | 105mm |
| Lifting time | ≤50S |
| Lowering time | ≤60S |
| Voltage AC 400 or 230V ± 5% 50 Hz | |
 |
 |
| Air Mechanical Lock | |
 |
|
 |
|
| Italian Hydraulic Pump | |
 |
