Mid Rise Scissor Lift

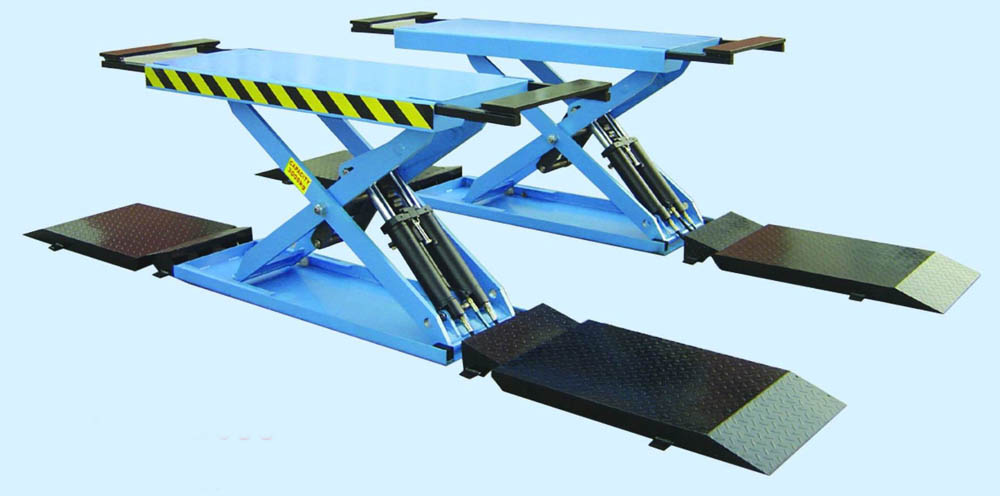

3 Ton Mid Rise Scissor Lift with Ramp, GC-SL1000
Features
- Scissor structure with floor installation, convenient for tyre operation and wheelbase maintenance.
- Only 105mm height to lift car, surface installation.

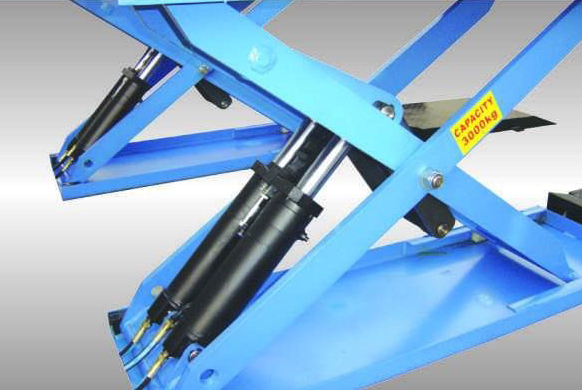

- Hydraulic cylinders lock each other and anti-explosion for oil hose, stable, reliable and synchronization.

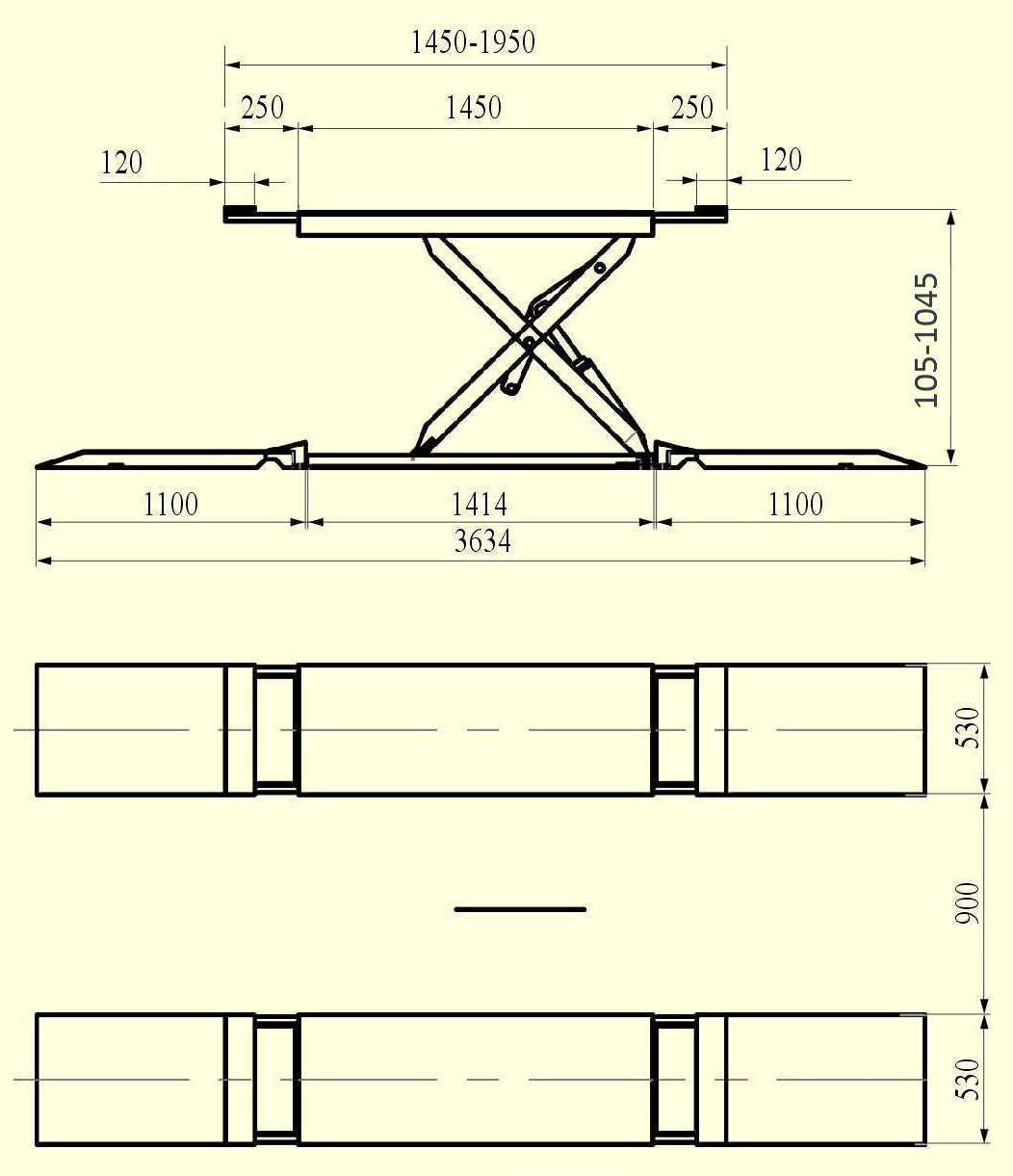

Specifications
| Capacity | 3000kg |
| Lifting height | 1000mm |
| Overall width | 1960mm |
| Overall length | 3634mm |
| Platform width | 530mm |
| Platform length | 1450-1950mm |
| Minimum height | 105mm |
| Lifting time | ≤50S |
| Lowering time | ≤60S |
| Voltage AC 400 or 230V ± 5% 50 Hz | |
 |
 |
 |
|

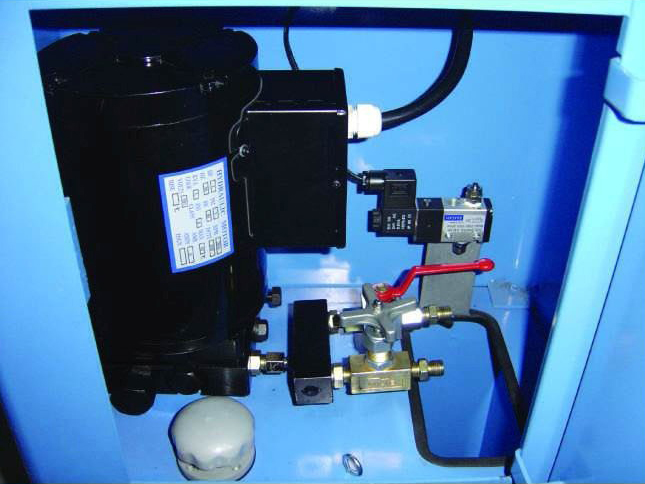

| Hydraulic Pump | |
 |
