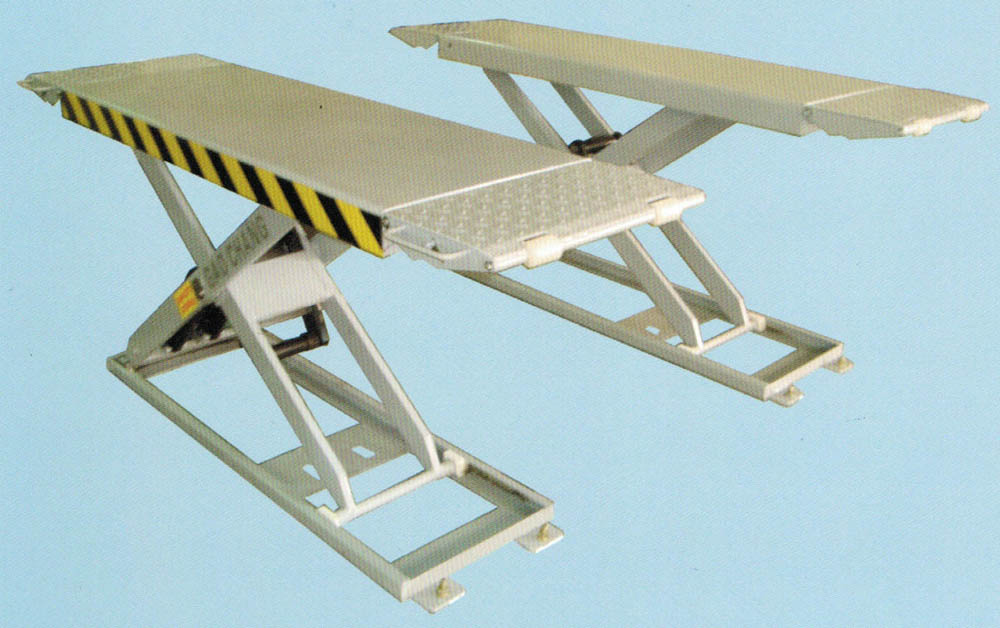

Mid Rise Scissor Lift
Mid Rise Scissor Lift, GC-3.0SSV
Mid Rise Scissor Lift (without Mechanical Lock )
Features
- Low profile structure for on ground installation

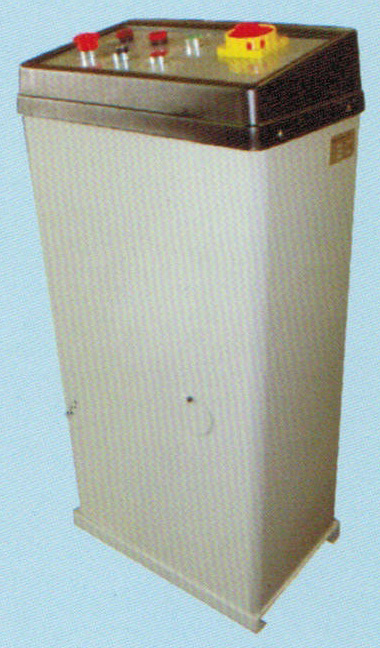

- Low voltage control (24V)
- With antiknock valve and safety valve to ensure the safety
- With extension ramp to suit for more vehicles
- Perform stable and reliable relying on some imported components

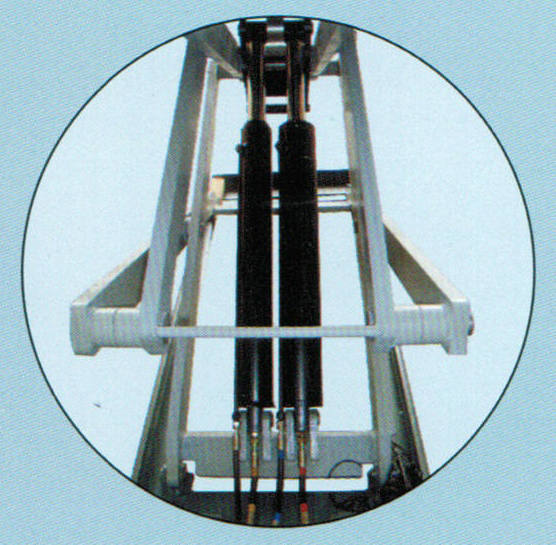

- Dual hydraulic circuit with solenoid valves that protect against pipe breakage
- Hydraulic-volumetric synchronism of platforms without any torsion bar

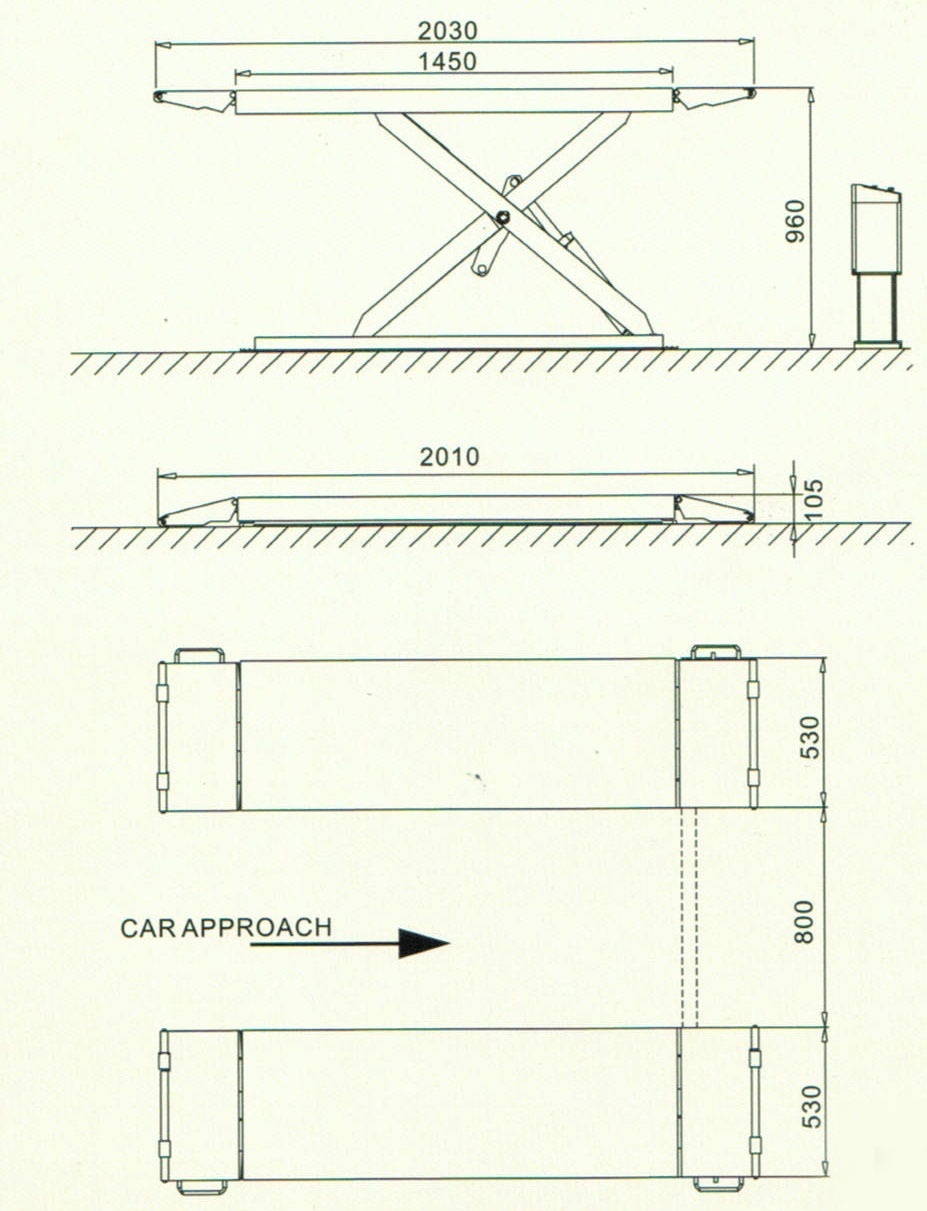

Specifications
| Capacity | 3000kg |
| Lifting height | 960mm |
| Overall width | 1860mm |
| Overall length | 2030mm |
| Platform width | 530mm |
| Platform length | 1450-2030mm |

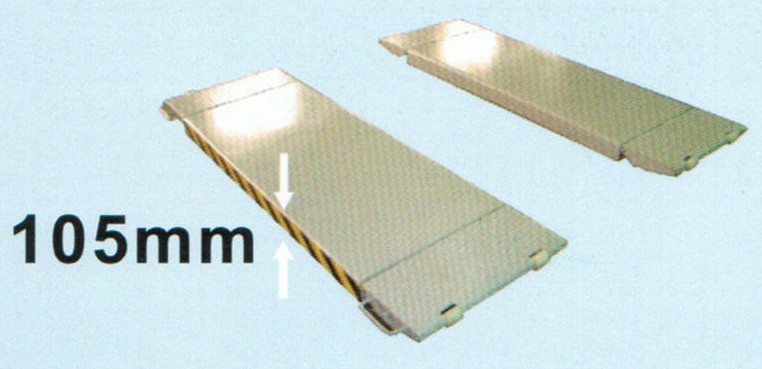

| Minimum height | 105mm |
| Lifting time | ≤50S |
| Lowering time | ≤60S |
| Voltage AC 400 or 230V ± 5% 50 Hz | |
 |
 |
 Without Mechanical Lock  |
|
|
|
