Small Scissor Lift

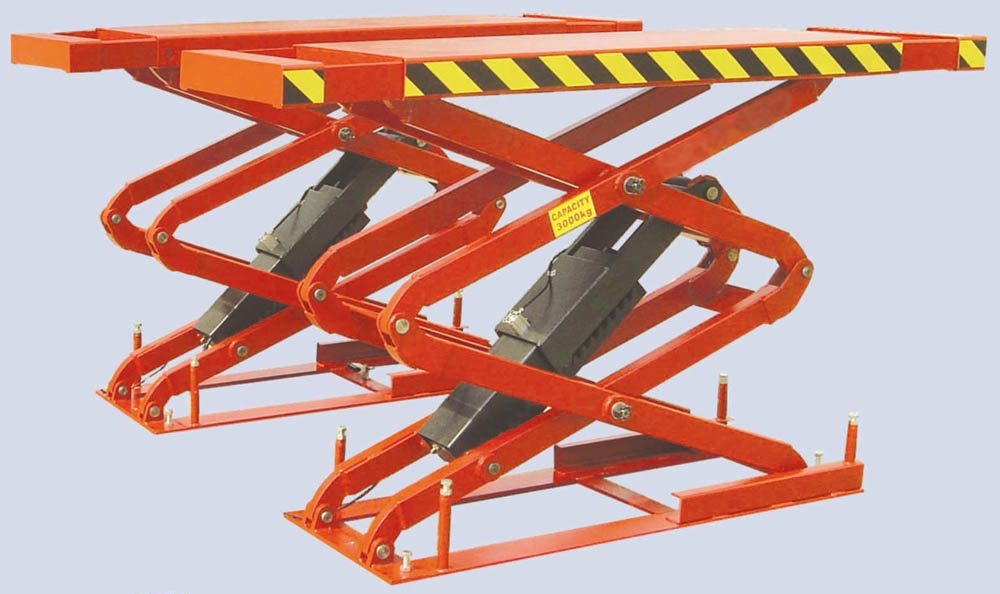

Small Scissor Lift (Double Extension), GC-3.0S(B)

3 Ton Small Scissor Lift (in Ground, Double Extension)


  • Scissor concealing platform structure occupies small space.
  • Device performs stable work relying on imported hydraulic, pneumatic and electrical components.
  • The pneumatic wide-teeth self-locking insurance system and anti-explosion pipe equipment ensure the safety and reliability of the device.
  • Easy for tyre mount and dismount and chassis maintenance.
  • With highest lifting height of 2M among similar products and adjustable platform length is suitable for various types of automobile.

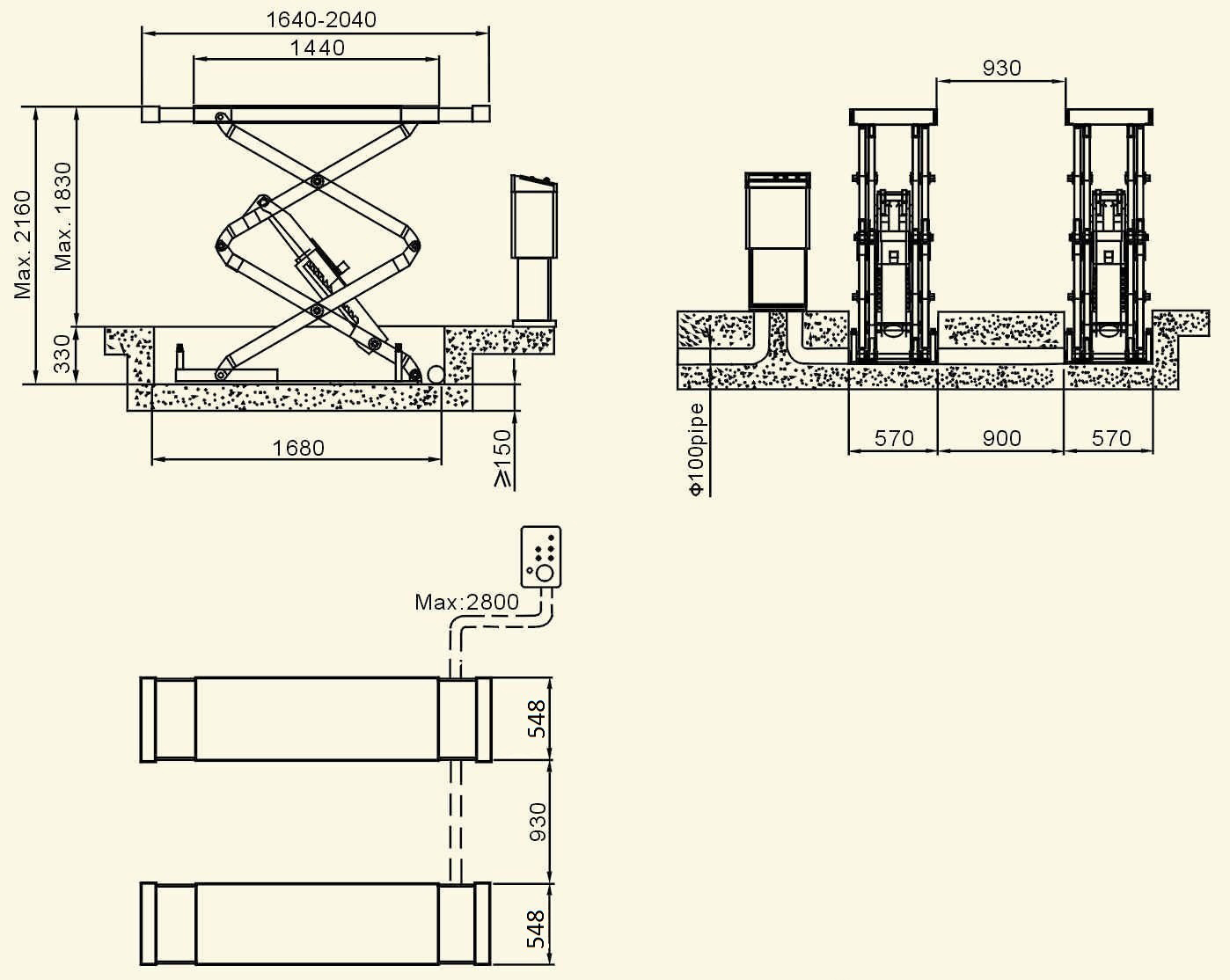

 Capacity  3000kg
 Lifting height  2160mm
 Overall width  2026mm
 Overall length  1640-2040mm
 Platform width  548mm
 Platform length  1640-2040mm
 Minimum height  330mm
 Lifting time  ≤50S
 Lowering time  ≤60S
 Voltage AC 400 or 230V ± 5% 50 Hz

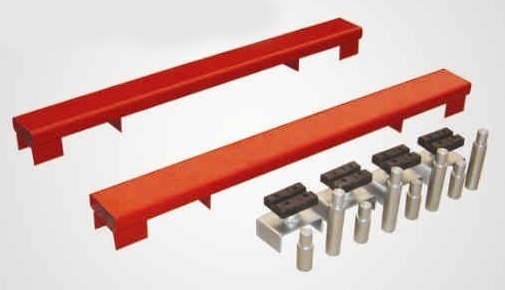

SUV Accessory
Italian Hydraulic Pump
