Small Scissor Lift

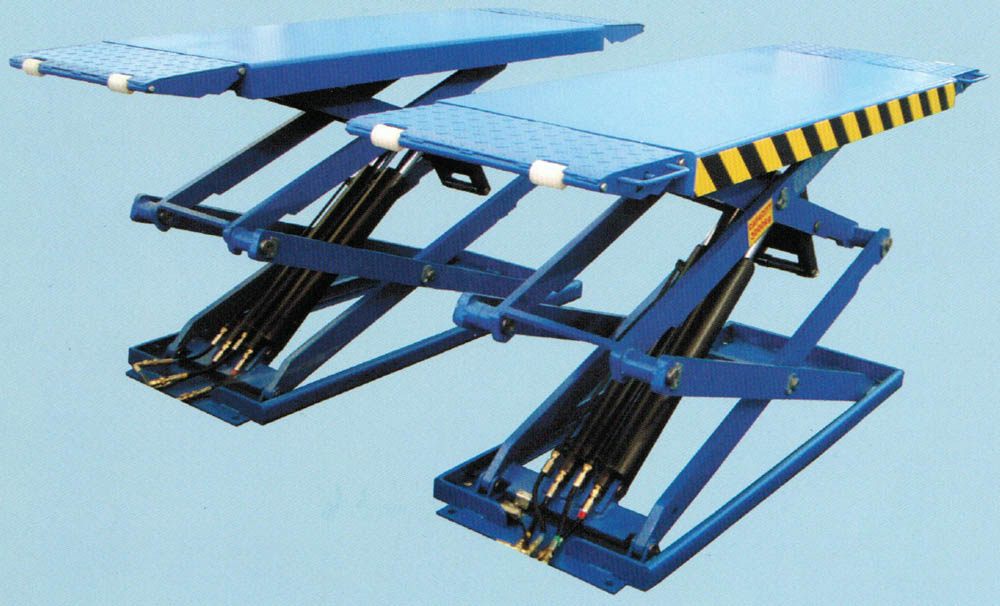

Low Profile Small Scissor Lift, GC-3.0SLV
3 Ton Low Profile Small Scissor Lift (Extension by Ramp, without Mechanical Lock)
Features
- Low profile structure for on ground installation

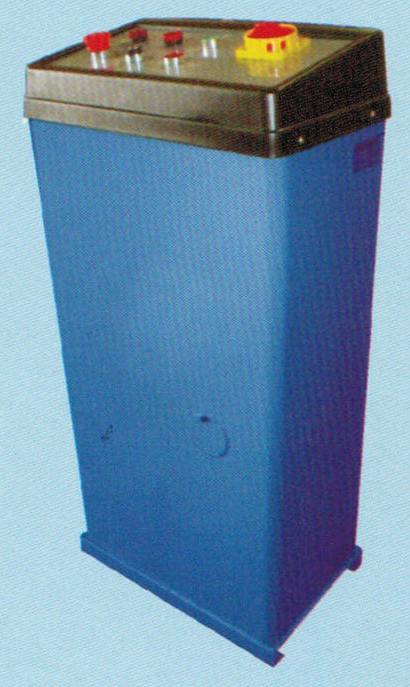

- Low voltage control (24V)
- With antiknock valve and safety valve to ensure the safety
- With extension ramp to suit for more vehicles
- Perform stable and reliable relying on some imported components
- Dual hydraulic circuit with solenoid valves that protect against pipe breakage
- Hydraulic-volumetric synchronism of platforms without any torsion bar

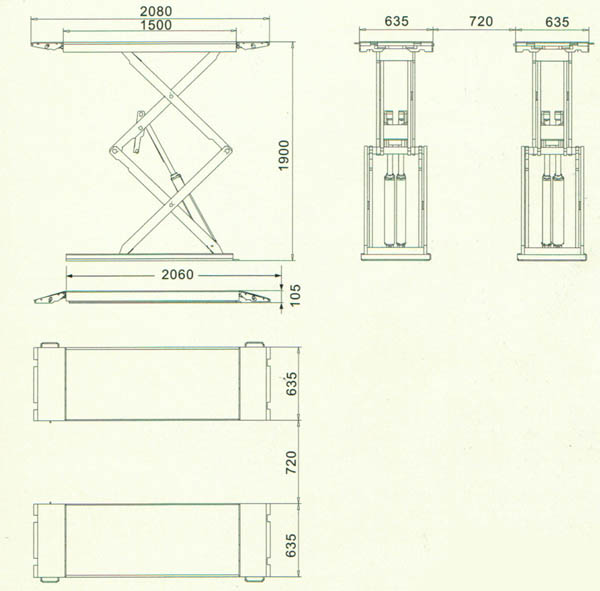

Specifications
| Capacity | 3000kg |
| Lifting height | 1900mm |
| Overall width | 1990mm |
| Overall length | 2080mm |
| Platform width | 635mm |
| Platform length | 1500-2080mm |
| Minimum height | 105mm |
| Lifting time | ≤50S |
| Lowering time | ≤60S |
| Voltage AC 400 or 230V ± 5% 50 Hz | |
 |
 |
 Without Mechanical Lock |
|
 |
