Collision Repair System

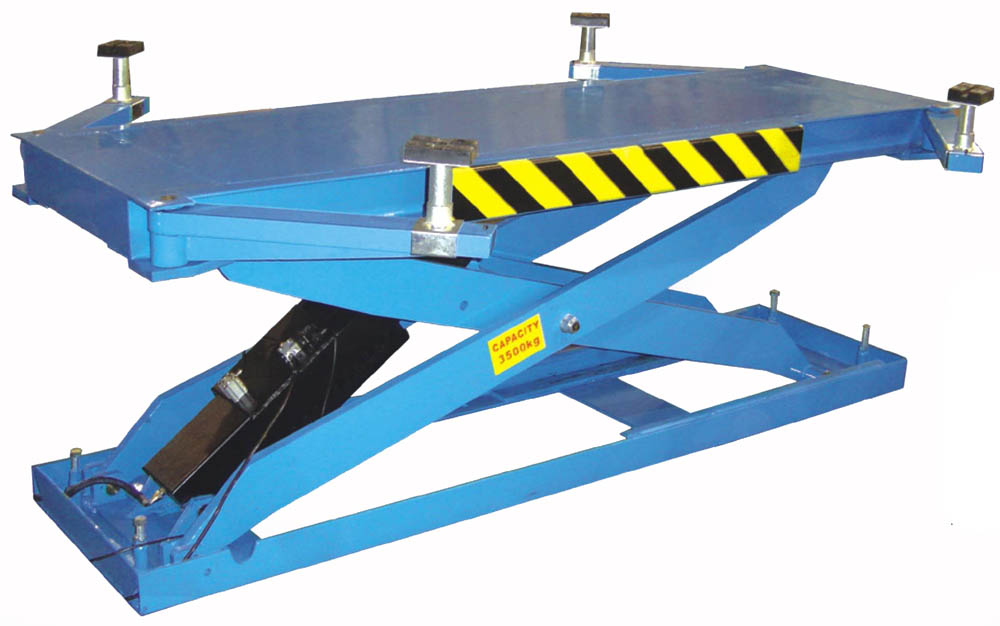

Single Platform Scissor Lift, GC-3.0SPL
Features
- Scissor structure with floor installation.
- Hydraulic cylinders lock each other and anti-explosion for pipe, stable, reliable.
- Italian hydraulic power unit.

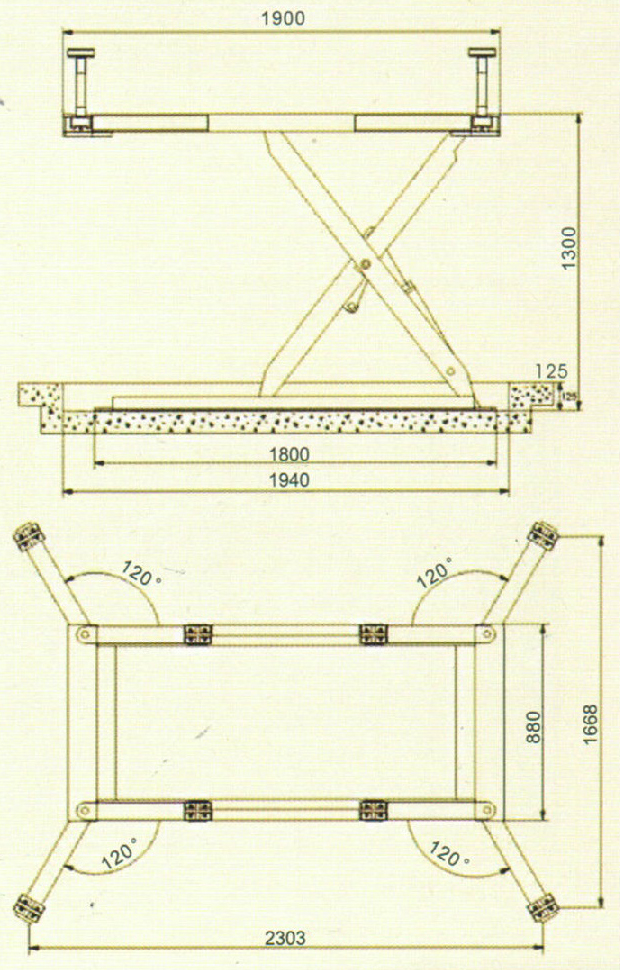

Specifications
| Capacity | 3000kg |
| Lifting height | 1300mm |
| Max. arm width | 1668mm |
| Max. arm length | 2303mm |
| Platform width | 880mm |
| Platform length | 1900mm |
| Minimum height | 120mm |
| Lifting time | ≤50S |
| Lowering time | ≤60S |
| Voltage AC 400 or 230V ± 5% 50 Hz | |
 |
 |
| Italian Hydraulic Pump | |
 |
