Collision Repair System

Single Platform Scissor Lift for Collision Repair, GC-3.0SP




Features
  • Scissor structure with floor installation.
  • Hydraulic cylinders lock each other and anti-explosion for pipe, stable, reliable.
  • Italian hydraulic power unit.

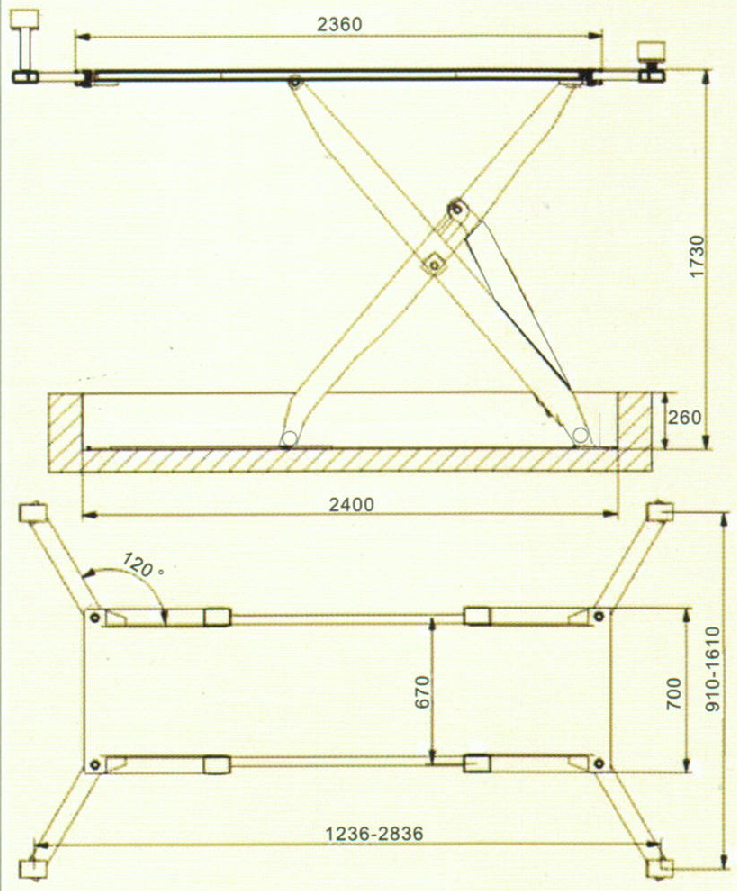

Specifications
 Capacity   3000kg
 Lifting height    1730mm
 Max. arm width    1610mm
 Max. arm length  2836mm
 Platform width   700mm
 Platform length  2360mm
 Minimum height   260mm
 Lifting time  ≤50S
 Lowering time  ≤60S
 Voltage AC 400 or 230V ± 5% 50 Hz


Italian Hydraulic Pump
